| Quantity: | |
|---|---|
LHW-30
OEM
8424899990
Agriculture
ISO9001: 2000, CE
New
Provide online video guidance, or on-site guidance when necessary
One Year
Sprayers
Metal
Wooden or Iron Pallet

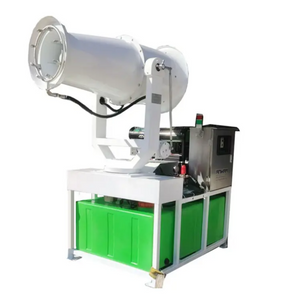

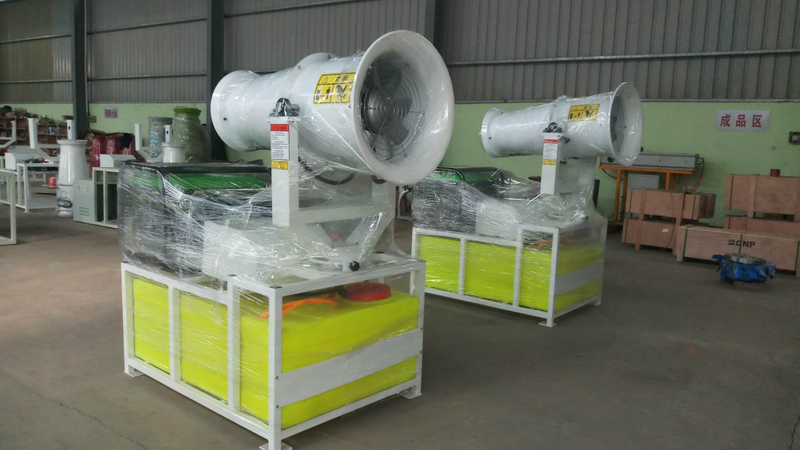

30m Low noise fog cannon
Dust Suppression Fog Cannon machine can spray disinfectant for sanitation purpose,and spray water mist suppress the dust or as agriculture spryaer. Fog Cannon , best machine for mining areas, construction fields and dusty environments.
Product Description
Total power（kw） | 4.8 | Spray flow | 1 m³/h |
Liquid pump type and power | plunger pump 2.2 | Nozzle material | Stainless steel |
Maximum spray range | 30 m | Air volume | 400 m³/min |
Control mode | Remote control | Air pressure | 650 pa |
Control distance | ≤20 m | Protection level | IP55 |
Machine weight | 300 | Using ambient temperature | -30～+50 ℃ |
Fan type and power | Jet fan 2.2 kw | Nozzle number | 8 |
Hydraulic pump pressure | 2.0 ~3.0 Mpa | Start mode | Add electric start |
Horizontal rotation angle | ±160° | Power allocation | 8kw gasoline or diesel generator. or 380v electricity |
Pitch angle | -15～85° | Machine weight | 402kgs |
Maximum coverage area | 2800㎡ | Machine size | 1.65m*1.02m*1.9m (L*W*H) |
Mist particle size | ≥20 μm | Water tank size | 1.32m*0.91m*0.45m (L*W*H) |
With the rapid development of construction, coal, mine, steel plants, raw material yards, port terminals and other industries,
a large amount of pollutive dust will be produced in the construction, mining, transportation, storage and other operational process,
and dust pollution is one of the important sources of haze. Therefore, our company has independently developed
LHW series environmental protection dust suppression Disinfectant Fog Cannon Machine , the Disinfectant Fog Cannon Machine
can effectively control dust pollution, improve working environment, prevent accidents in coal mines , and play an important role in
promoting safe production, safeguarding workers' health , maintaining environmental hygiene and sanitation.
Product Advantages |
| 1. Jet fan designed with double blades, reducing the power of motor ,ensures spray effect. |
| 2. Equipped with environmental protection motor,pollution-free with low energy consumption. |
3. Equipped with an 8KW diesel/gasoline generator for mobile operation; 500L water tank ensures continuous operation after adding liquid. |
4. It is used for mist spraying, dust suppression and cooling down effect in the environment protection industry, coal and other materials storage yard, unloading port, vehicle unloading place, wharf, steel plant and other occasions; |
| 5. The weight of 300 kg and its overall size makes it suitable to be put up on pickup truck for cooperate work. |
